3'' Plate Rigid High Temperature Caster

Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 500 Piece/Pieces
Delivery Time: 15 Days

Basic Info

Model No.: MW240311TH

Specification: 3 Inch

Type: Rigid

Wheel Diameter: 75mm

Wheel Width: 32mm

Height Of Installation: 113.5mm

Offset Diatance: 50mm

Load Capacity: 80kg

Wheel Material: High Temperature PA

Additional Info

Packaging: Carton

Productivity: 10000PCS/Week

Brand: Mywin caster

Transportation: Ocean,Air

Place of Origin: Zhe Jiang, China(Mainland)

Supply Ability: 15 days after receiving deposit

Certificate: IAF;CNAS;SGS;TUV

Product Description

About Plate Rigid High Temperature Caster

  The plate caster's wheel is made from fiberglass and reinforced with nylon. It is non-marking, rolls with ease, and resists impact, acids, and moisture. These wheels are suitable for use in high-temperature applications such as in smoke houses, bakeries, and autoclaves. Its recommended operating temperature range is -20 to 280 degrees C, with temperatures up to 300 degrees C tolerated intermittently for up to 30 minutes with an equal amount of cooling time.


Specification:

Item No Wheel Size Fitting Hight Load Capacity Material Thickness Temperature
Plate Size Hole Spacing Bearing
MW240311TH
75*32
105
80
PA with fiber glass
2.3/3mm
280℃ 95*70mm
73.5*48.5mm
6001 double ball bearing
MW240411TH
101*32
133.5
115
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing
MW240511TH
126*32
158
130
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing
MW240312TH
75*32
105
80
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing
MW240412TH
101*32
133.5
115
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing
MW240512TH
126*32
158
130
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing
MW240317TH
75*32
105
80
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing
MW240417TH
101*32
133.5
115
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing
MW240517TH
126*32
158
130
PA with fiber glass
2.3/3mm
280
95*70mm
73.5*48.5mm
6001 double ball bearing

Free Sample are provided.


Shipping Type

We will arrange a reasonable mode of transportation for you according to the contract agreement between the two parties. For example, by sea, by air, by railway transportation etc. Of course, if FOB terms are applied, the cost of these modes of transportation will be charged at the port of destination.


shipping express




Packing



Export Process

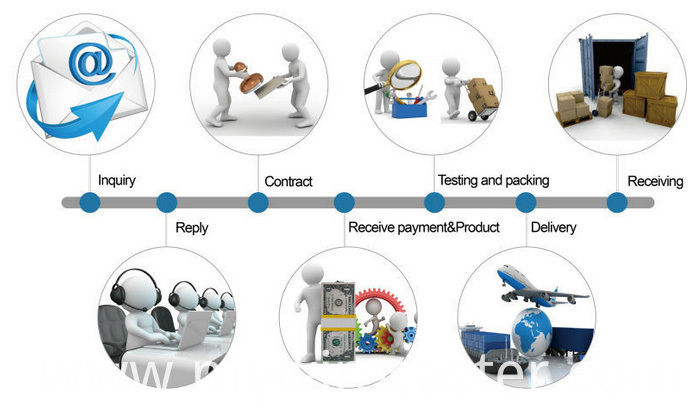

Trading Process

Our Service

1. According to your detail inquiry of different caster wheels, we will give our price within 12 hours, whatever is weekend.

2. According to your requests or minds, give our price or provide samples to you for testing.

3. Provide free design for you according to your actual need.

4. Although we only do business on caster wheels, we could help our clients to find the related products suppliers in China mainland.

5. We only specialized in middle and top grade caster wheels, so we are sorry to the clients who only purchase low grade caster wheels.
